Disconnecting Overhead Connectors – Interior Electrical Disconnects Before Headliner Removal

In this article, we will discuss the importance of properly disconnecting overhead electrical components before removing a headliner. This guide is designed for both professionals and advanced DIYers, providing essential tips and warnings to ensure a smooth disassembly process.

Why Overhead Disconnection Matters

Improper disconnection of overhead components can lead to:

Damage to wiring harnesses.
Diagnostic Trouble Codes (DTCs) being stored in modern vehicles.
Potential ignition blockages in newer systems.

Disconnecting these components before lowering the headliner helps avoid ripping wires or stretching connectors, ensuring a clean and safe removal process.

Common Overhead Components to Disconnect

1. Dome Lights

Dome lights are often held in place by:

Spring clips or screws located behind plastic lenses.

2. Overhead Consoles

These may contain various components, including:

Map lights.
SOS buttons.
Sensors and garage opener modules.

3. Sunroof Switches

Sunroof switches are usually integrated into the overhead console and should be disconnected from behind.

4. Headliner-Mounted Harnesses

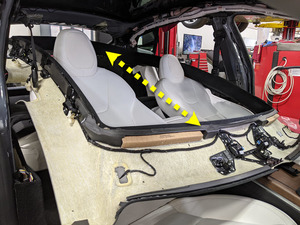

In some vehicles, wiring may be glued or clipped to the headliner. Disconnect the full headliner harness at:

The A-pillar base (follow the wire).
Under the dash, near the fuse box.

If the harness stays on the roof and not the liner, there’s no issue; the liner can come down cleanly.

Modern Systems to Watch Out For

1. ADAS / Lane Keep Cameras

These cameras are typically located behind the rearview mirror. Be sure to remove the bezel carefully, as some cameras require a factory scan tool to recalibrate after disconnection.

2. Weather Monitoring Systems

Found in Ford and Stellantis (Mopar) vehicles, these systems may have barometers or light sensors embedded in roof components.

3. Windshield Washer Lines

In RAM trucks and other newer vehicles, rubber lines for fluid may run overhead through the console. Disconnect these with care to avoid damage.

DTC Risk

Emphasize that removing connectors without disconnecting the battery can store codes and potentially block ignition in newer systems. Always prioritize safety and proper procedures.

Disconnection Best Practices

Always label connectors to ensure smooth reinstallation.
Use plastic trim tools to avoid cracking lens covers or bezels.
Wait 10 minutes after battery disconnect before unplugging sensitive modules.
Watch for clipped connectors on both ends: seat side and vehicle side.

Pro Tips:

Some consoles have hidden screws behind the dome light lens — pry gently.
Label everything, especially if multiple harnesses run to a console module.
