Fuse Tap Setups – Clean Power for Multiple Car Accessories
Single & Dual Fuse taps, powering multiple 12V interior accessories cleanly and safely is paramount. This guide will walk you through setting up a dual fuse tap system, ensuring your starlight kits, ambient lights, dash cams, and other gadgets get reliable power without compromising your vehicle's electrical integrity.
What is a Fuse Tap?

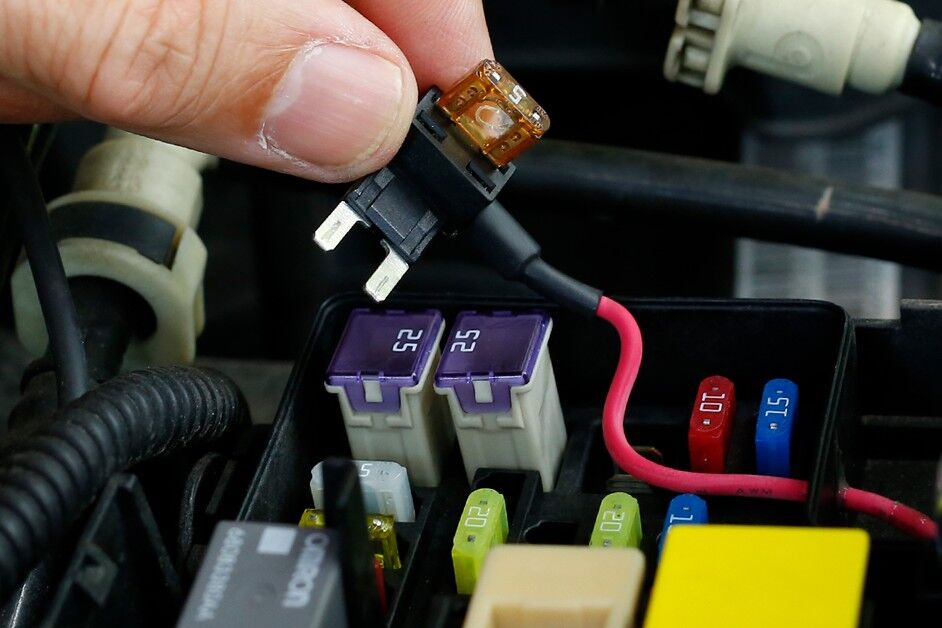

A **fuse tap**, also known as an **add-a-fuse**, is a clever device that allows you to draw power from an existing circuit in your car’s fuse box without cutting or splicing any factory wires. It safely "piggybacks" onto a fuse slot using a small adapter. Each fuse tap typically features:
- **Two fuse slots:** One for the original circuit's fuse, and another for the fuse protecting your new accessory.
- **A pigtail wire:** This is your positive lead, which connects to your accessory.
Fuse taps come in various sizes (Mini, Micro2, Micro3, Low-Profile Mini, Standard ATO, etc.). It's crucial to match the fuse tap size to the type of fuse used in your vehicle's fuse box.
Why Use a Fuse Tap?
- **Maintain Factory Wiring and Warranty:** No cutting or splicing means your vehicle's original wiring remains untouched.
- **Clean Power Solution:** Provides a dedicated, fused power source for hardwired accessories.
- **Ignition-On Power:** Allows you to easily tap into an ignition-switched circuit, meaning your accessories only turn on when the key is in the "on" position.
- **Avoid Firewall Routing:** Eliminates the need to route wires through the firewall to access power from the engine bay.
Single vs. Dual vs. Multi-Tap Setups
A single fuse tap is perfectly adequate for powering one simple LED kit or a single accessory. However, if your project involves multiple 12V accessories, such as:
- A starlight headliner controller
- An ambient door lighting kit
- A dash cam or radar detector
- Footwell lighting kits
...then you'll want to upgrade to a **dual or triple fuse tap setup** for optimal performance and safety.
Benefits of Multi-Fuse Setups:
- **Avoid Daisy-Chaining:** Prevents messy and potentially risky daisy-chaining of accessories, where one accessory powers another.
- **Dedicated Circuits:** Allows each accessory to run on its own clean, dedicated line with its own properly rated fuse.
- **Easier Troubleshooting:** If an issue arises, it's much simpler to troubleshoot and isolate the problematic accessory.
- **Clean OEM+ Look:** Provides a professional, factory-like appearance in your fuse box, especially crucial for pro or customer builds.
How to Set It Up
For a dual or multi-accessory setup, you'll typically use a **fuse tap splitter block** (readily available on Amazon or eBay). Here’s the general process:
- **Primary Tap:** Connect your primary fuse tap to a suitable **ignition-switched circuit** in your car's fuse box. Good candidates often include circuits for wipers, radio, or seat heaters – always verify with a multimeter!
- **Accessory Connections:** Connect each output from the splitter block to its own accessory:
- Ambient lighting controller
- Starlight controller
- Dash cam, radar detector, etc.
- **Grounding:** Ensure each accessory is properly grounded nearby using a fork or ring terminal secured to a clean chassis bolt. A solid ground connection is just as important as a good power connection.
Important Tips:
- **Correct Amperage:** Always use the correct amperage fuses for each circuit. Never use a higher-rated fuse than recommended for the accessory or the original circuit.
- **Check Total Current Draw:** Be mindful of the total current draw on the circuit you're tapping into. Do not overload one fuse tap circuit, as this can blow fuses or damage your vehicle's wiring.
- **Clean Connections:** Use ferrules or heat-shrink connectors for cleaner, more secure, and safer wiring terminations.
- **Wire Management:** Zip tie and route all wires neatly, keeping them away from moving parts, pedals, and sharp edges.
Best Use Cases
- **High-End Builds:** Ideal for projects where the customer desires multiple distinct lighting zones or accessories.
- **Integrated Systems:** Perfect for builds incorporating both interior LED lighting and recording devices like dash cams.
- **Independent Control:** Ensures that different kits can be independently controlled without signal interference or power fluctuations.
Helpful Products to Mention:
- Amazon "Add-a-circuit Fuse Tap 5 Pack" (for various fuse types)
- Dual slot fuse tap modules with integrated terminal blocks
- 12V distribution blocks with individual fuse protection
